PRODUCT OVERVIEW

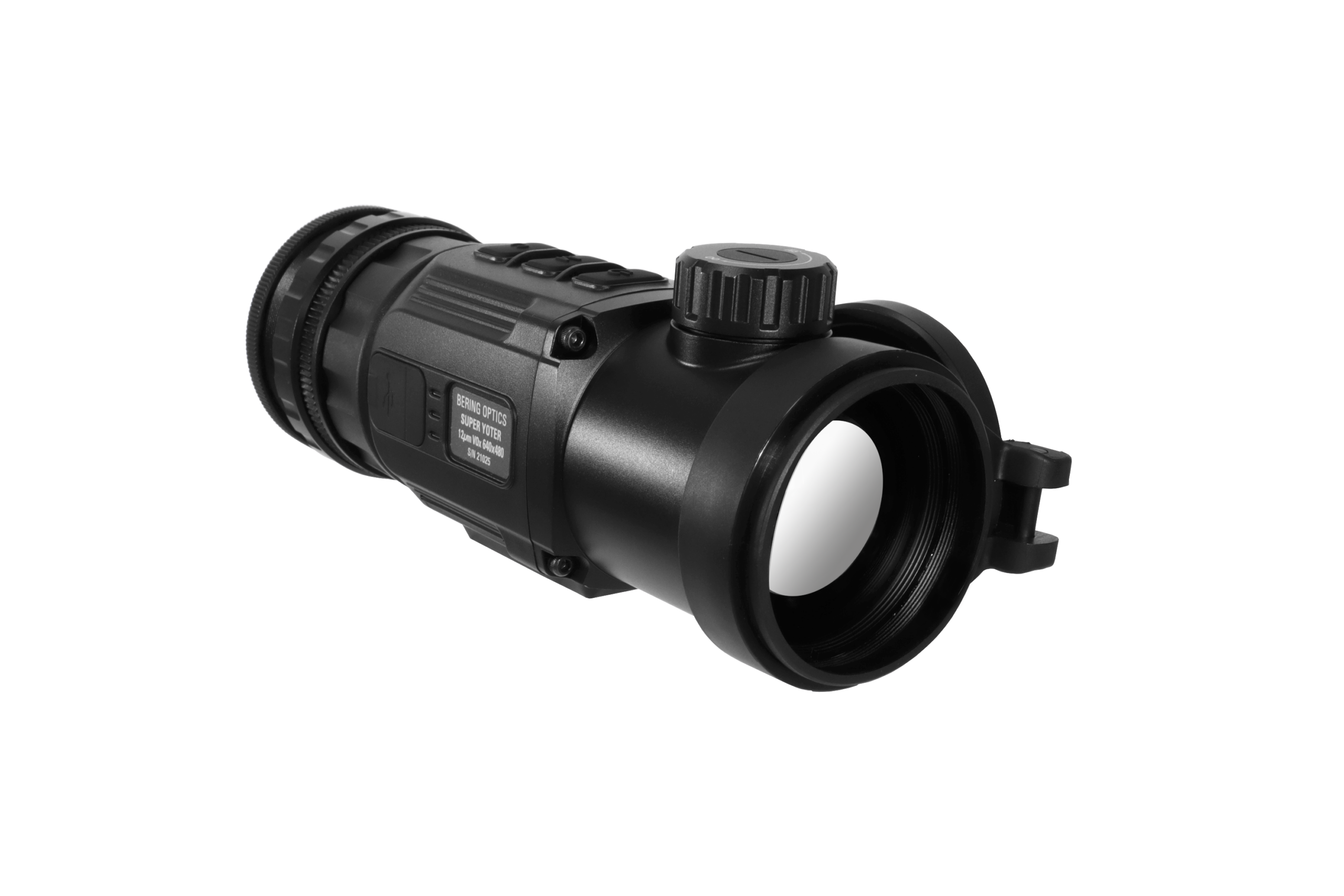

Bering Optics SUPER YOTER C™ Universal Thermal Clip-on is build with an advanced 12µm Vanadium Oxide (VOx) 640×480 and proprietary electronics is unique with no rival. The superb 50mm Germanium Lens is a superior for predator control at medium through long-range distances. Aimed at the growing coyote and predator hunting market, the product is exceptionally lightweight and compact.

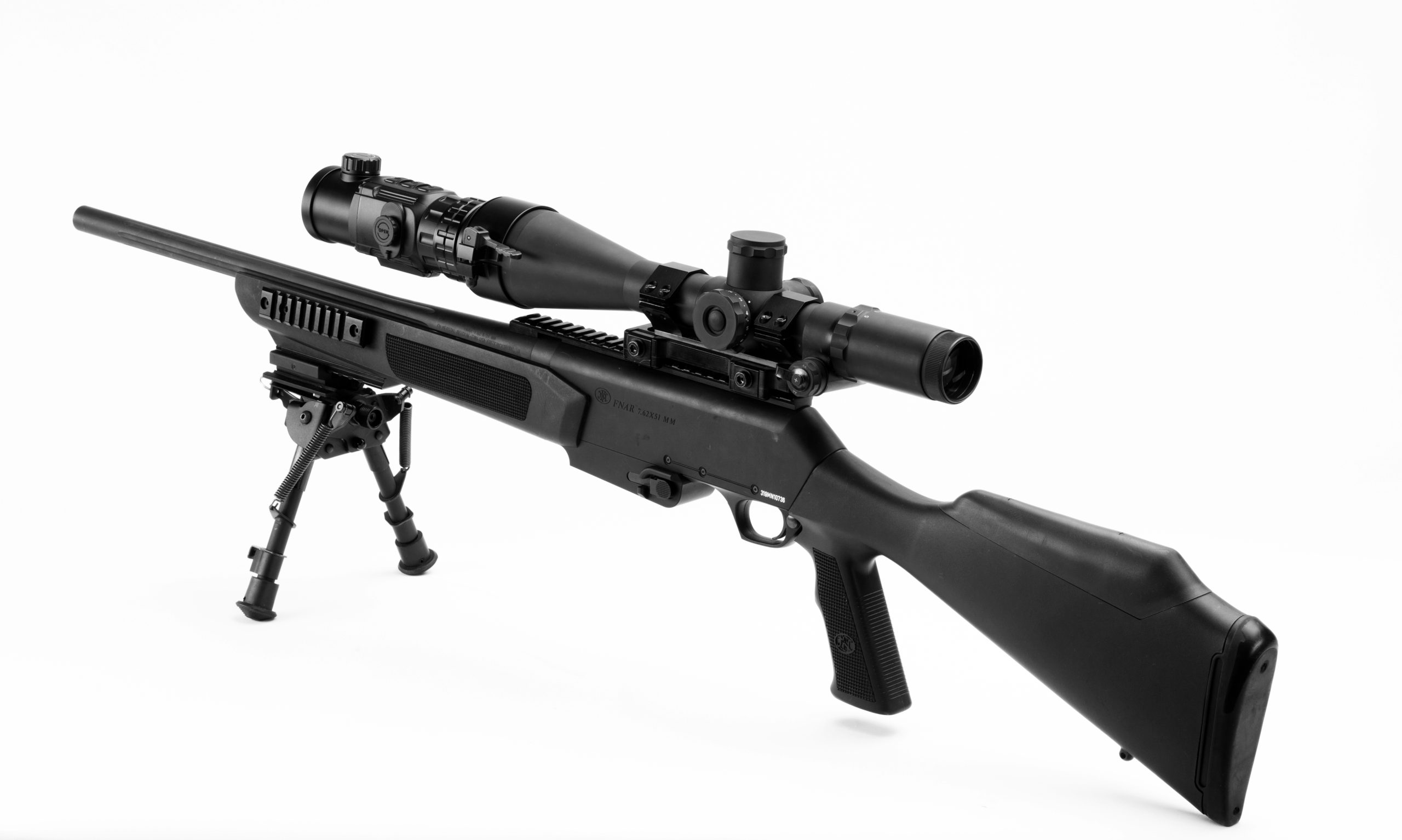

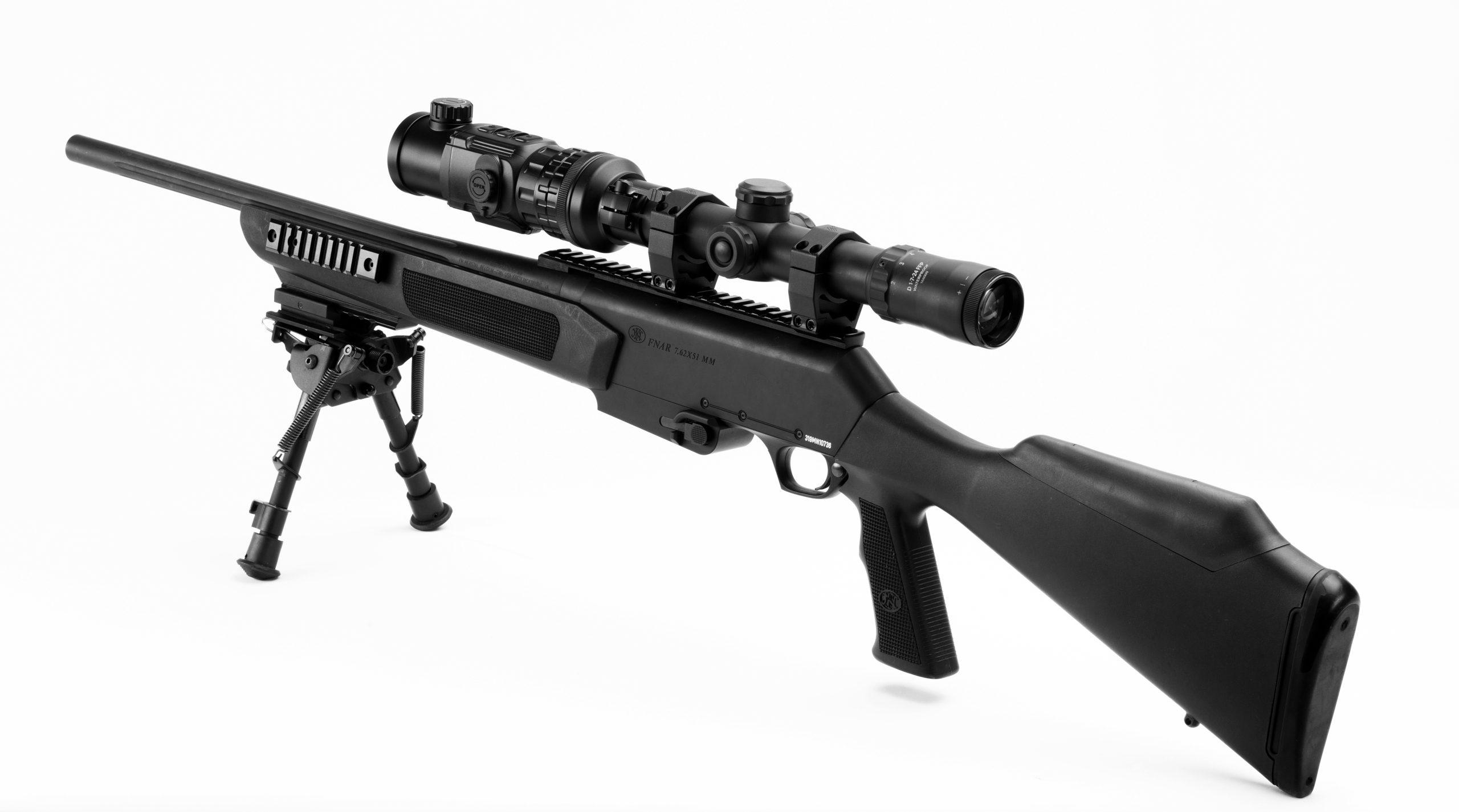

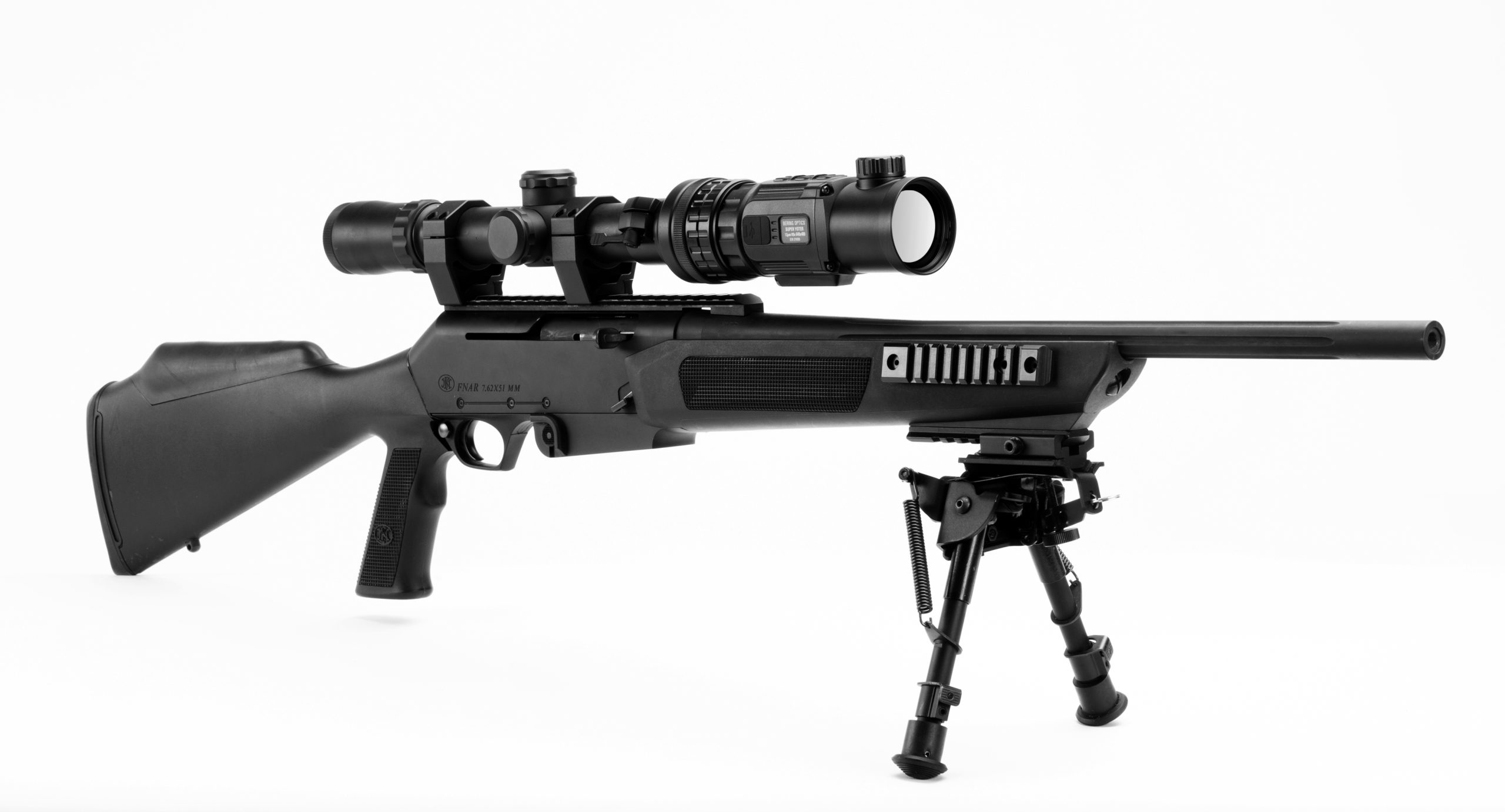

SUPER YOTER C™ is versatile. It can be mounted in the daytime sight lens hood using a snap-on mounting adaptor of customized diameter, making the day optics conversion 3 seconds quick and easy.
SUPER YOTER C additional detachable eyepiece helps to converted the clip-on in to 4.0x native and up to 16.0x digital magnifications handheld thermal scanner for scouting and detection.

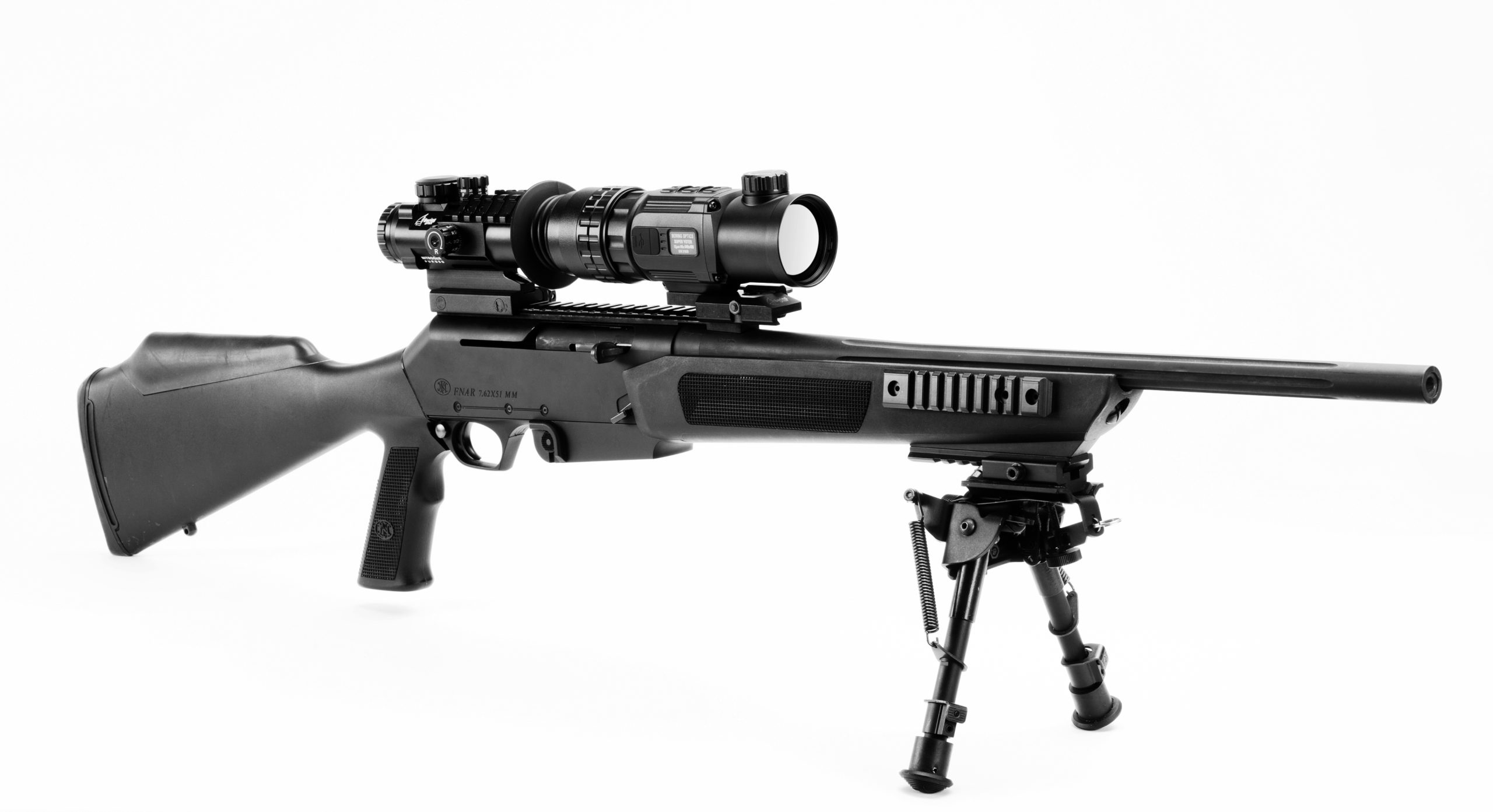

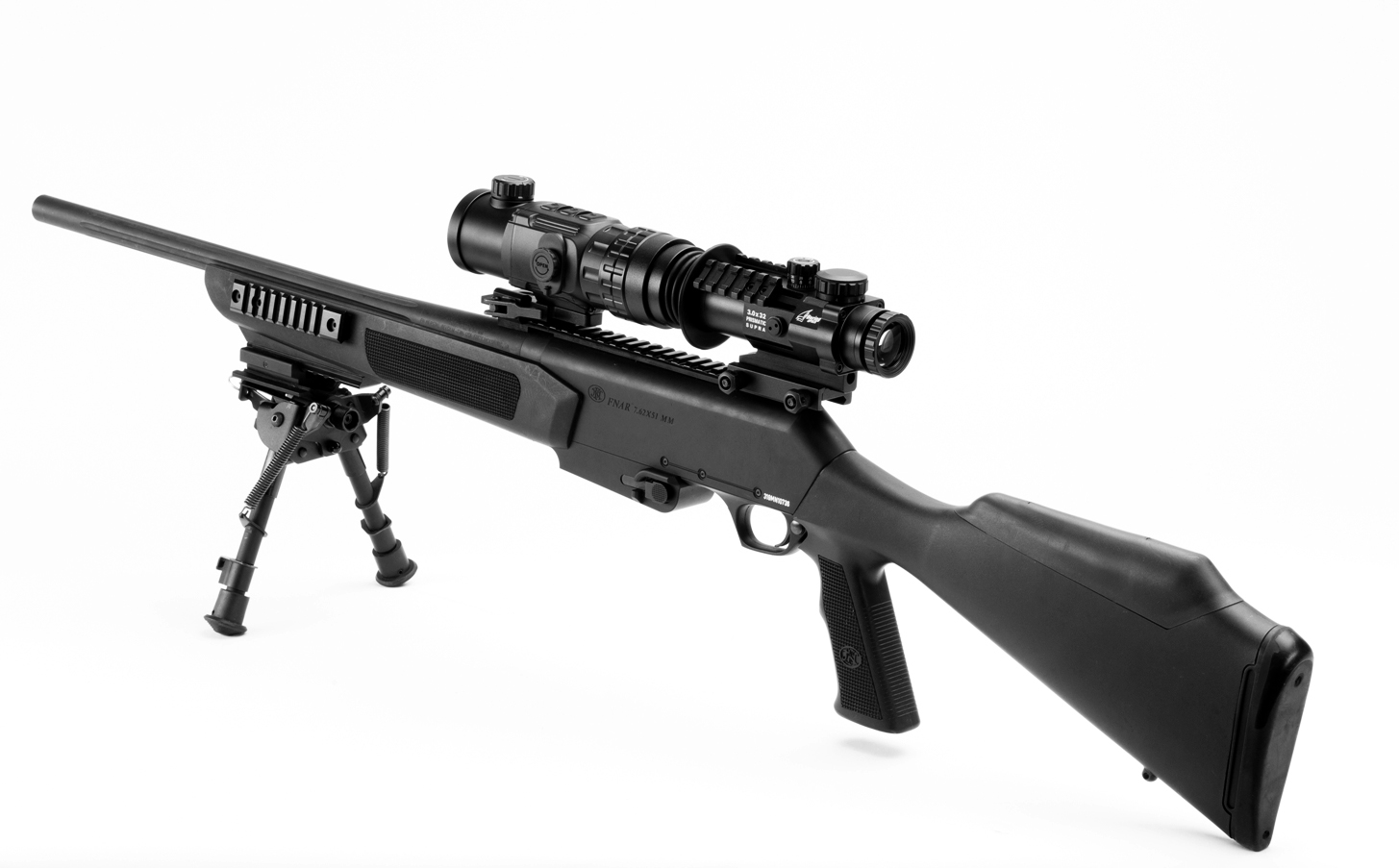

The SUPER YOTER C™ clip-on can be also equipped with Quick Release Weaver Mount (SKU# 80990) and set up in line with tactical sights such as Prismatic, etc.
Simple to use and zero, the SUPER YOTER C™ has an easy to understand and navigate menu including a wide range of options including switchable image polarity memory for 4 gun profiles. The control buttons are designed with tactile elements, allowing the user to operate even in pitch-black situations.
The clip-on is nitrogen-purged, and is water-, dust- and shock-rated for .338 Win Mag., 30-06 Spring Mag., .300 H&H and other high recoil calibers. The SUPER YOTER C™ 640×480 Thermal Clip-on is action ready in virtually any light conditions or environment, including conditions when the environmental obscurants such as dust, haze, fog, high humidity are present.
KEY FEATURES
- Superior for hogs, coyote and predator control at medium- and long-range distances
- Rugged, compact and lightweight
- Excellent performer in high humidity conditions
- Mountable in front of scopes with lens diameters ranging from 24mm to 64mm
- Optimal with 2.0x to 15.0x day time scopes
- Can be used with heavy recoil weapons, including 30-06 Spring Mag., .300 H&H, .375 H&H
- Convertible to the 4.0x – 16.0x hand held Thermal Scanner when coupled with a detachable eye piece
- 12µm Vanadium Oxide (VOx) 640×480 core with Manual calibration
- Switchable image polarity: White Hot / Black Hot / Red Hot / Colored Hot
- 4 color options for each reticle pattern
- Manual control of the image sharpness and screen brightness
- Ability to center the screen with respect to the viewed reticle
- Ability to save zeroing data of 4 gun profiles
- Precise internal lens focusing mechanism
- High resolution 1024×768 OLED Display
- 5V DC external power supply option via a Type-C USB port
- Blind Pixel repair tool
- Standby mode
- Digital Compass
- Inclinometer
- Battery status indicator
- Nitrogen purged
- Video out
- 4 years warranty
KIT INCLUDES
SUPER YOTER C™ 12µm VOx 640×480 Thermal Clip-on
QR Weapon Mount with 2 screws BE80990 or Throw Lever Adapter BE809XX
Front lens flip-up protective cap
4.0x – 12.0x Detachable eye piece with a rubber eye guard
Detachable Clip-on mode connector piece
Soft Carrying Case
Lens Cleaning Cloth
Instruction manual
Video-out Type C USB cable
Two CR123 Batteries
SPECIFICATIONS
| Product Modification | SUPER YOTER 640×480 | |
| Product SKU# | BE46150 | |
| Optical Magnification in the Clip-on mode, x | 1.0x | |
| Digital Multiplication, X | 1X, 2X, 4X | |
| Optical Magnification in the Thermal Scanner mode, x | 4.0x, 8.0x, 16.0x | |
| Objective Lens system | 50mmF/1.0 | |
| Angular FOV at 1.0x (horizontal x vertical), degree | 8.8° x 7.0° | |
| Eye relief, mm (hand held mode / clip-on mode) | 20 / 30 | |
| Exit Pupil, mm (hand held mode / clip-on mode) | 6 / 25 | |
| Diopter Adjustment, D (handheld scanner mode only) | -5: +5 | |
| Core resolution, pxl | 640×480 | |
| Pixel pitch, µm | 12 | |
| Image refresh rate, Hz | 50 | |
| Thermal Sensitivity (NETD), mK | ≤ 50 | |
| Display type and resolution, pxl | OLED 1024×768 | |
| Start-up time, min., sec. | 5 | |
| Object type and size, approx., ft² / m² | 8 / 0.75 | 25.8 / 2.4 |
| Detection, approx.*, yds / m | 2500 / 2290 | 3300 / 3000 |
| Recognition, approx.*, yds / m | 450 / 400 | 800 / 730 |
| Identification, approx.*, yds / m | 250 / 230 | 550 / 500 |
| Dimensions w/out adaptor, in / mm (hand held mode / clip-on mode) | 6.61″x2.72″x2.95″ / 168x69x75
7.10″x2.72″x2.95″ / 180x69x75 |
|
| Weight, approx., oz/g (hand held mode / clip-on mode) | 15.6 / 442 /
18.4 / 522 |
|
| Power supply standard | CR123 (two) | |
| Estimated battery life, hour | up to 4 | |
| Operating temperature, °F/°С | -4° to +122° / -20° to +50° | |
| Water intrusion | IP66 | |
| Humidity, % | Up to 98% | |
OPTIONAL ACCESSORIES
- Light Suppressor with Rubber Eye Guard BE80910
- QR Weapon Mount with 2 screws BE80990.
- SUPER YOTER C is compatible with the throw level adaptors BE809XX*. The below table shows the most popular diameters, however, the custom-sized adaptor can be special ordered.
| SKU- Diameter*, mm | SKU- Diameter*, mm | |
| BE80930- 30
BE80936- 36 BE80940- 40 BE80942- 42 BE80946- 46 BE80948- 48 BE80950- 50 BE80952- 52 |
BE80957- 57
BE80958- 58 BE80960- 60 BE80962- 62 BE80964- 64 BE80968- 68 BE80972- 72 BE80980- 80 |
