PRODUCT OVERVIEW
The Bering Optics SUPER YOTER R™ Thermal Weapon Sight features the advanced 12μm Vanadium Oxide (VOx) 640×480 core resolution with 50Hz refresh rate that makes the scope ideal for predator control at medium- and long-range distances. This Thermal Scope has 3 modifications with native magnification of 3.0x (BE46050L), 2.0x (BE46035/BE46035L) and 1.5x (BE46025/BE46025L) with digital zoom of 2X, 4X. The wide range of controls and capabilities allow the user to adapt the scope to various conditions and personal preferences. There are 8 reticle patterns including 3 BDC reticles, along with four color options for each reticle pattern. The sight operation is controlled with three buttons allowing easy selection of the options.
A unique adjustable Stradiametric Rangefinder can be set to the height of the animals, thus increasing the overall usefulness of this
feature. Other useful features of the SUPER YOTER R™ is a wide selection of the image adjustment options as well as the image background adjustment and calibration.
The SUPER YOTER R™ is nitrogen-purged, is water-, dust- and shock-proof and shock-rated for .338 Win Mag., 30-06 Spring Mag. The SUPER YOTER R™ is action ready in any environment or light conditions, including conditions when the environmental obscurants such as smoke, dust, haze, are present.
FEATURES
- Superior for predator control at medium- and long-range distances
- Excellent performer in high humidity conditions
- Picture-in-Picture function- 2X multiplied image on a top of the display
- Automatic shatter based thermal VOx core with Auto- or Manual calibration
- Switchable image polarity: White Hot / Black Hot / Red Hot / Colored Hot
- 8 reticle patterns including 3 BDC reticles
- 4 color options for each reticle pattern
- Precise W/E adjustment increments is 0.54” at 1X (native magnification) and just 0.14” at 4X multiplied image for
BE46050L model
- Manual control of the image sharpness and screen brightness
- Manual control of the contrast
- Manual control of the image background balance of white (Cool or Warm)
- Ability to save 4 profiles of zeroing calibration data
- Stradiametric Rangefinder function to estimate the distance to the targets of manually adjustable target’s height
- A precise lens focusing mechanism
- 5V DC external power supply option via a Type-C USB port
- Blind Pixel repair tool
- Standby mode
- Digital Compass
- Inclinometer
- Battery status indicator
- Nitrogen purged
- Video out
- 32Gb internal memory
- Built-in internal recording function in .mp4 (video) and .jpeg (image) formats
- Wi-Fi capable- allows media recording to the mobile device (iOS or Android App is required)
- Quick-Detach (QD) Picatinny mount (BE46025/BE46035)

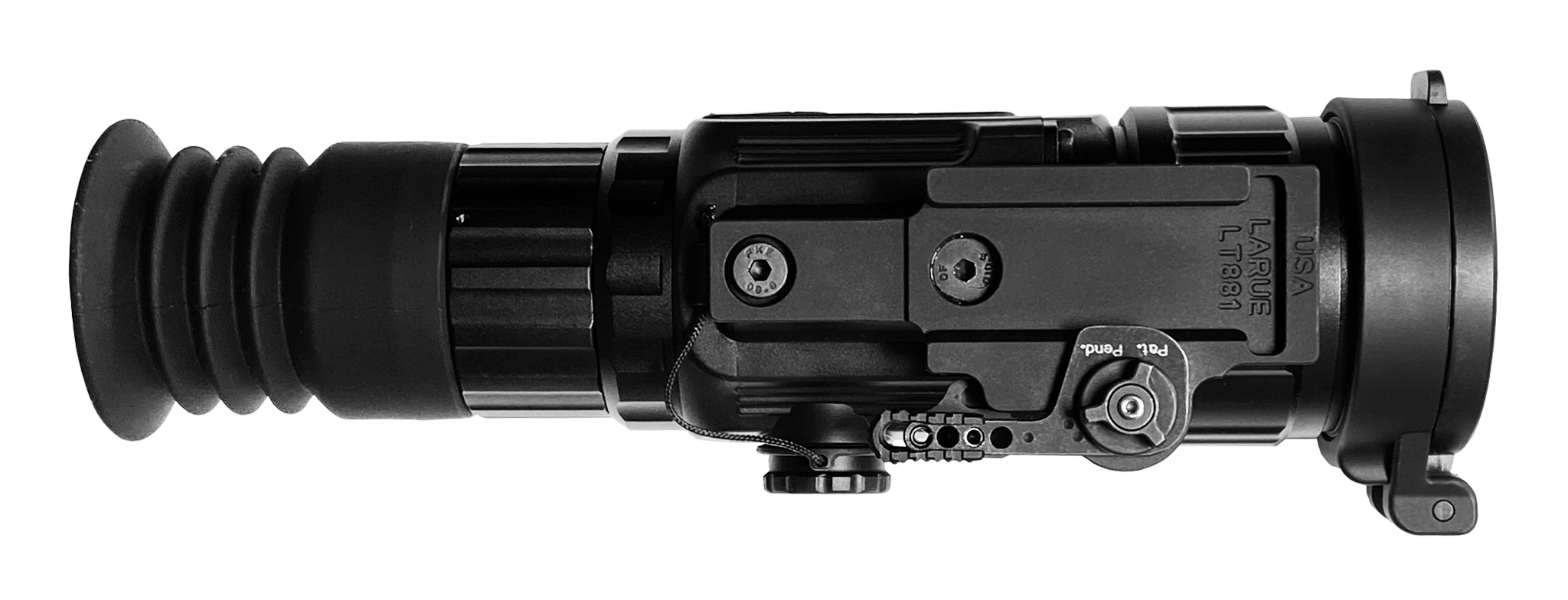

- LaRue Tactical® Quick-Detach (QD) lockable mount (BE46025L/BE46035L/BE46050L)
- 4 years warranty on parts and labor
SPECIFICATIONS
| Product Modification | SUPER YOTER R | |||||
| Product SKU# | BE46025 / BE46025L | BE46035 / BE46035L | BE46050L | |||
| Optical Magnification, x | 1.5x | 2.0x | 3.0x | |||
| Digital Multiplication, X | 2X, 4X | |||||
| Objective lens system | 25mmF/1.0 | 35mmF/1.0 | 50mmF/1.0 | |||
| Angular FOV at 1.0x (horizontal x vertical), degree | 18° x 13° | 11° x 8° | 8.5° x 6.4° | |||
| Eye relief, mm | 46 | |||||
| Focus range, yard | 1 to infinity | |||||
| Diopter Adjustment, D | -5: +5 | |||||
| Core resolution, pxl | 640×480 | |||||
| Pixel pitch, µm | 12 | |||||
| Image refresh rate, Hz | 50 | |||||
| Thermal Sensitivity (NETD), mK | ≤ 40 | |||||
| Display type and resolution, pxl | OLED 1024×768 | |||||
| Start-up time, typical, sec. | 20 | |||||
| Object type and size, approx., ft² / m² | Hog 7.5 / 0.7 | Coyote 5.5 / 0.5 | Hog 7.5 / 0.7 | Coyote 5.5 / 0.5 | Hog 7.5 / 0.7 | Coyote
5.5 / 0.5 |
| Detection, approx., yds / m | 900 /800 | 700 /630 | 1100 /1000 | 900 /800 | 1650/1500 | 1200/1100 |
| Recognition, approx., yds / m | 450 /400 | 350 /325 | 660 /600 | 550 /500 | 990 /900 | 770 /700 |
| Dimensions with QR mount, approx., in / mm | 7.5 x 2. 83 x 2. 36 / 190x72x60 | 7.8 x 2. 83 x 2. 36 / 200x72x60 | 8.46 x 3.15 x 2.36 / 215x80x60 | |||
| Weight w/out batteries, approx., oz/g | 17.5 / 497 | 18 / 510 | 20 / 570 | |||
| Power supply | 3V CR123 (two) or 3.7V rechargeable 16650 (two) or
5V DC USB C-type |
|||||
| Estimated battery life with two Lithium 3V CR123, hour | 3.5 | |||||
| Operating temperature, typical, °F/°С | 4° to +122° / -15° to +50° | |||||
| Water intrusion | IP66 | |||||
| Humidity, % | up to 98% | |||||
KIT INCLUDES
SUPER YOTER R™ 640×480 Thermal Weapon Sight
Quick-Detach (QD) mount
Front lens protective cap
Rubber eye guard
2 CR123 batteries
Type-C USB cable
Soft Carrying Case with a shoulder strap
Lens Cleaning Cloth
Instructions manual
OPTIONAL ACCESSORIES
Focus Ring Cattail by ZRTS (BE80980) for SUPER YOTER R™ with 35mm Lens (BE46035 / BE46035L)
Tactical Rubber Eye Guard (BE80030)
Extended Battery Cap (BE80008)
